The model of this hydraulic shearing machine / cutting machine is ,steel welded structure with stress-free for reliable performance,hydraulic transmission and accumulator return stroke,characterized by easy operation,reliable performance and fine appearance.
Basic features
- Steel welded structure with stress-free for reliable performance
- Hydraulic transmission and accumulator return stroke,characterized by easy operation,reliable performance and fine appearance
- Shadow line lighting
- Full or short stroke adjustment of blade holder to achieve high efficiency and productivity
- Foot switch for operation with emergency stop
- Blades with high tensile strength for cutting carbon steel and stainless steel
- Indicator-based adjustment of blades clearance is easy, convenient and swift
Specification
| Model | Shearing Thickness (mm) |
Shearing Width (mm) |
Shearing Angl ( º ) |
Number of Strokeds (mm) |
Backgauge Range (mm) |
Main Motor Power (kw) |
| QC12Y/K-4 x 2500 | 4 | 2500 | 1º 30´ | 18 | 20-500 | 4 |
| QC12Y/K-4 x 3200 | 4 | 3200 | 1º 30´ | 18 | 25-600 | 5.5 |
| QC12Y/K-4 x 4000 | 4 | 4000 | 1º 30´ | 12 | 20-600 | 5.5 |
| QC12Y/K-4 x 5000 | 4 | 5000 | 1º 30´ | 10 | 20-600 | 5.5 |
| QC12Y/K-4 x 6000 | 4 | 6000 | 1º 30´ | 7 | 20-800 | 7.5 |
| QC12Y/K-6 x 2500 | 6 | 2500 | 1º 30´ | 18 | 20-600 | 7.5 |
| QC12Y/K-6 x 3200 | 6 | 3200 | 1º 30´ | 14 | 20-600 | 7.5 |
| QC12Y/K-6 x 4000 | 6 | 4000 | 1º 30´ | 12 | 20-600 | 7.5 |
| QC12Y/K-6 x 5000 | 6 | 5000 | 1º 30´ | 10 | 20-600 | 7.5 |
| QC12Y/K-6 x 6000 | 6 | 6000 | 1º 30´ | 7 | 20-800 | 7.5 |
| QC12Y/K-8 x 2500 | 8 | 2500 | 1º 30´ | 14 | 20-600 | 7.5 |
| QC12Y/K-8 x 3200 | 8 | 3200 | 1º 30´ | 10 | 20-600 | 7.5 |
| QC12Y/K-8 x 4000 | 8 | 4000 | 1º 30´ | 8 | 20-600 | 11 |
| QC12Y/K-8 x 5000 | 8 | 5000 | 1º 30´ | 7 | 20-800 | 15 |
| QC12Y/K-8 x 6000 | 8 | 6000 | 1º 30´ | 6 | 20-800 | 15 |
| QC12Y/K-8 x 8000 | 8 | 8000 | 1º 30´ | 5 | 20-800 | 15 |
| QC12Y/K-10 x 2000 | 10 | 2000 | 1º 30´ | 12 | 20-600 | 11 |
| QC12Y/K-10 x 2500 | 10 | 2500 | 1º 30´ | 10 | 20-600 | 11 |
| QC12Y/K-10 x 3200 | 10 | 3200 | 1º 30´ | 10 | 20-600 | 11 |
| QC12Y/K-10 x 4000 | 10 | 4000 | 1º 30´ | 8 | 20-600 | 15 |
| QC12Y/K-12 x 2000 | 12 | 2000 | 2º | 12 | 20-600 | 15 |
| QC12Y/K-12 x 2500 | 12 | 2500 | 2º | 10 | 20-600 | 15 |
| QC12Y/K-12 x 3200 | 12 | 3200 | 2º | 9 | 20-600 | 15 |
| QC12Y/K-12 x 4000 | 12 | 4000 | 2º | 8 | 20-800 | 18.5 |
| QC12Y/K-12 x 5000 | 12 | 5000 | 2º | 7 | 20-800 | 22 |
| QC12Y/K-12 x 6000 | 12 | 6000 | 2º | 6 | 20-800 | 22 |
| QC12Y/K-12 x 8000 | 12 | 8000 | 2º | 5 | 20-800 | 30 |
| QC12Y/K-16 x 2500 | 16 | 2500 | 2º | 8 | 20-600 | 18.5 |
| QC12Y/K-16 x 3200 | 16 | 3200 | 2º | 7 | 20-600 | 18.5 |
| QC12Y/K-16 x 4000 | 16 | 4000 | 2º | 5 | 20-800 | 18.5 |
| QC12Y/K-20 x 2000 | 20 | 2000 | 2º 30´ | 8 | 20-600 | 22 |
| QC12Y/K-20 x 2500 | 20 | 2500 | 2º 30´ | 6 | 20-800 | 22 |
| QC12Y/K-20 x 3200 | 20 | 3200 | 2º 30´ | 6 | 20-800 | 30 |
| QC12Y/K-20 x 4000 | 20 | 4000 | 2º 30´ | 6 | 20-800 | 30 |
| QC12Y/K-25 x 2000 | 25 | 2000 | 3º | 6 | 20-800 | 30 |
| QC12Y/K-25 x 2500 | 25 | 2500 | 3º | 6 | 20-800 | 37 |
| QC12Y/K-25 x 3200 | 25 | 3200 | 3º | 6 | 20-800 | 37 |
| QC12Y/K-30 x 2500 | 30 | 2500 | 3º 30´ | 6 | 20-800 | 37 |
| QC12Y/K-30 x 3200 | 30 | 3200 | 3º 30´ | 5 | 20-800 | 45 |
| QC12Y/K-40 x 2500 | 40 | 2500 | 3º 30´ | 5 | 20-800 | 45 |
| QC12Y/K-40 x 3200 | 40 | 3200 | 3º 30´ | 5 | 20-800 | 55 |
| QC12Y/K-50 x 3000 | 50 | 3000 | 3º 30´ | 5 | 20-800 | 75 |
| QC12Y/K-60 x 4000 | 60 | 4000 | 3º 30´ | 5 | 20-800 | 90 |

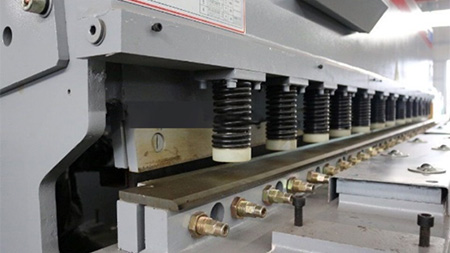

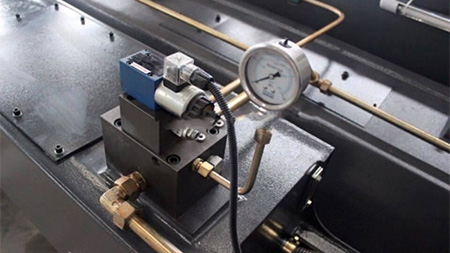

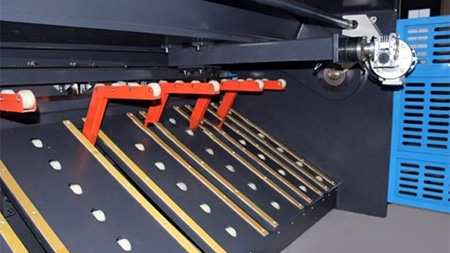

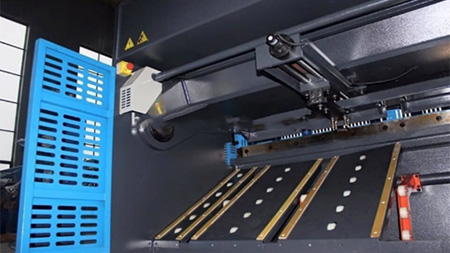

Application

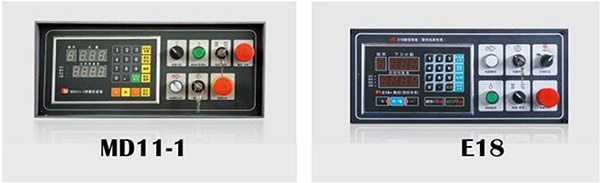

Optional CNC system

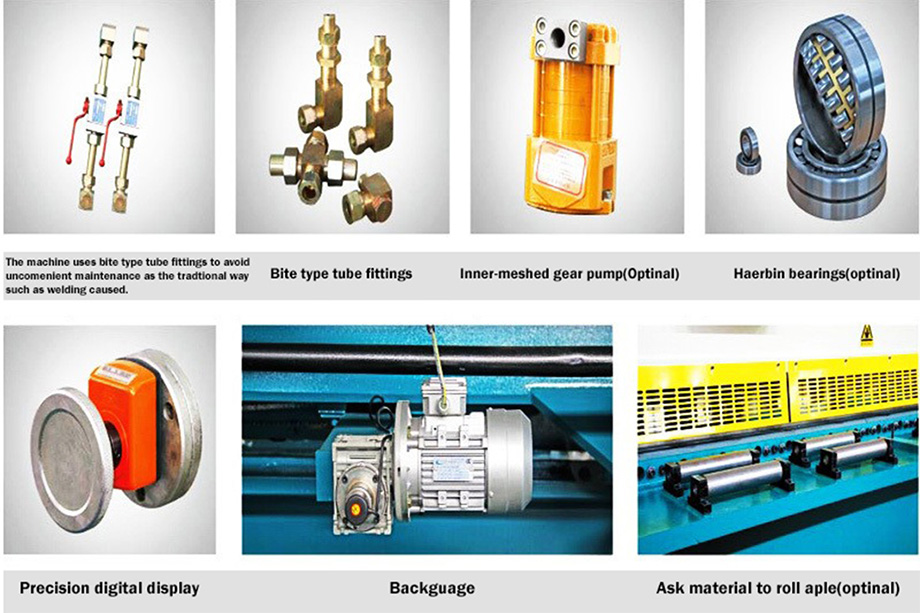

More details
