Features:
- High strength machine head, with high efficiency worm and turbine drive, high sawing efficiency, low noise and no burrs.
- The nose can be turned about 45 degrees, the angle is clearly portrayed, easier to adjust, two-way clamp, upper and lower clamp, automatic cooling system and hand adjustment gear.

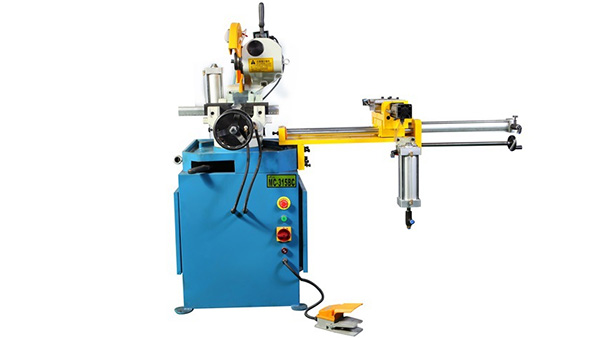

MECHANICAL CHARACTERISTICS
European high-intensity head, equipped with high efficiency worm and turbine drive, high cutting rate, no noise, and no flash. Manual mode is used, head can be turned 45 degrees to the right and left, 45°-90°-45° columns are added, making it easier to adjust; manual two-way clamp, automatic cooling system and manually adjustable stopper are provided. Automatic clamp is automatic feed type, and clamp and head advance and retreat automatically by air pressure except for basic structure and fittings. This model is the best weapon for pipe production.
Specification:
| Model | Unit | MC-315BC | |
| Cutting angle | 90° | 45° | |
| Hollow square tube | mm | 60×60 | 45×45 |
| Hollow circle tube | Φ80 | Φ60 | |
| Solid circle tube | Φ30 | Φ20 | |
| Solid square tube | mm | 40×40 | 30×30 |
| Size | mm | 600×800×1350 | |
| Weight | Kg | 350 | |
